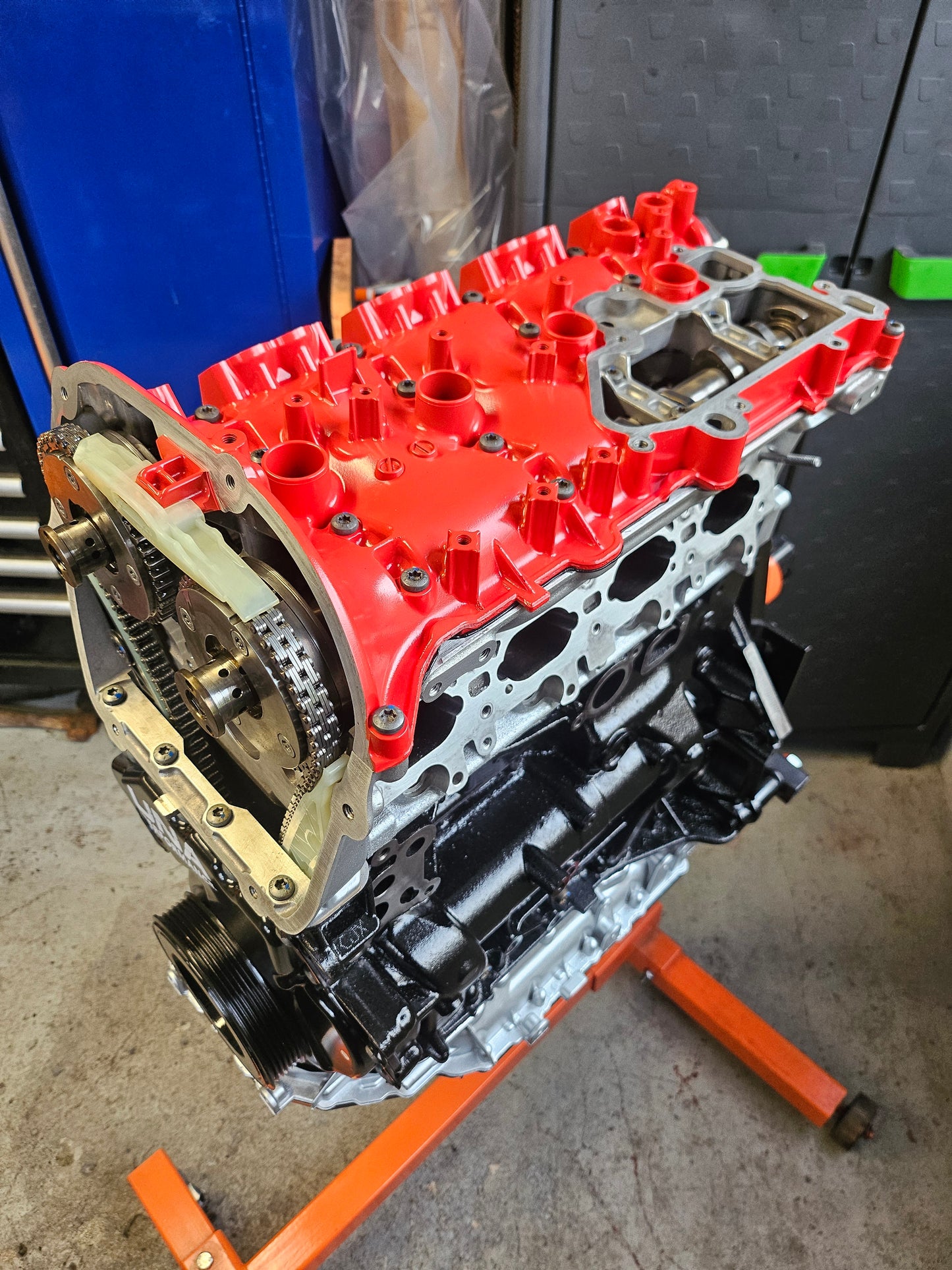

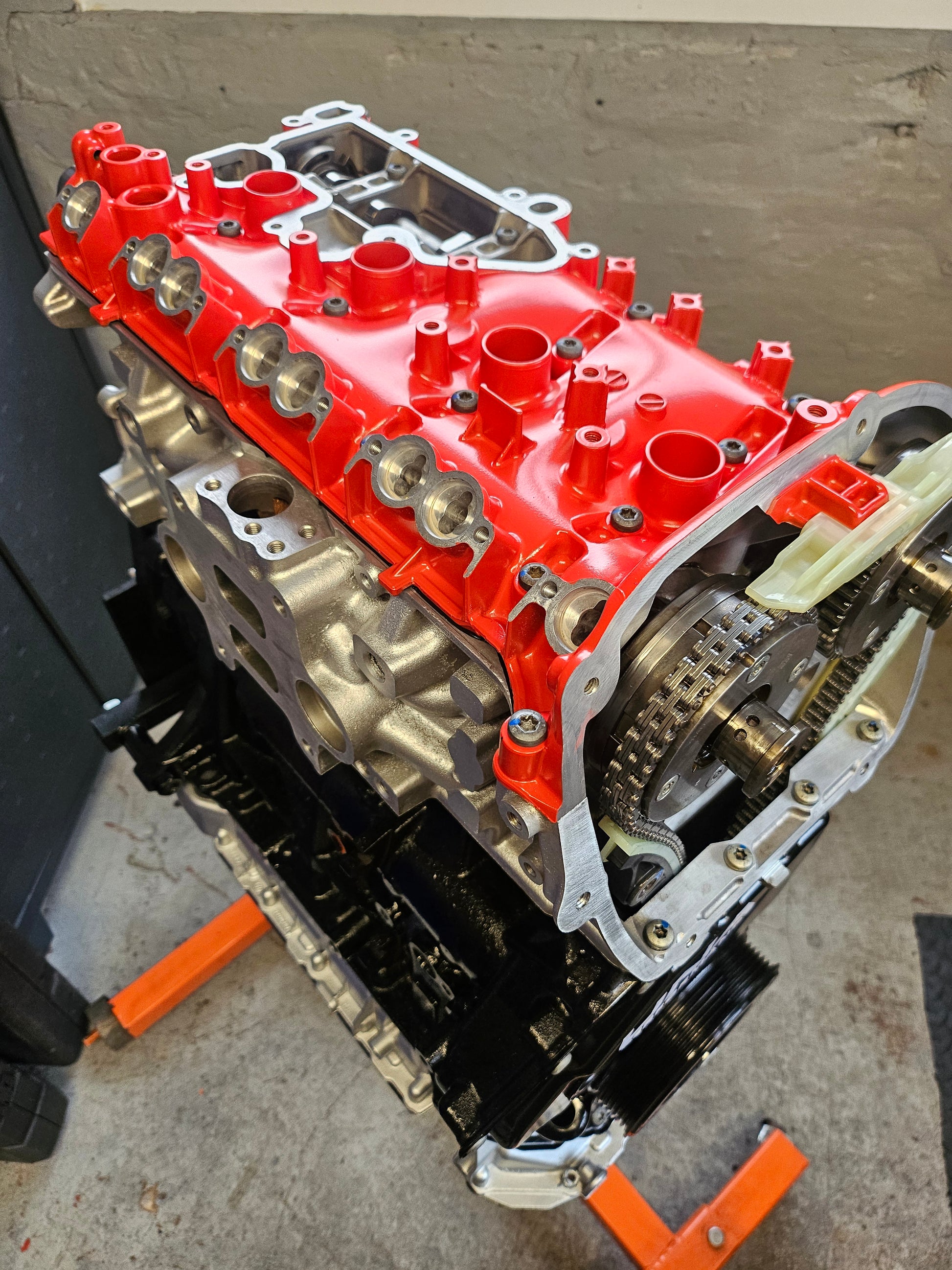

Engine Build Specification
Block Preparation
• Block bored and honed to 83mm
• Deck skimmed and checked
• Crankshaft polished
• All tolerances measured and plastigauged
Forged Rotating Assembly

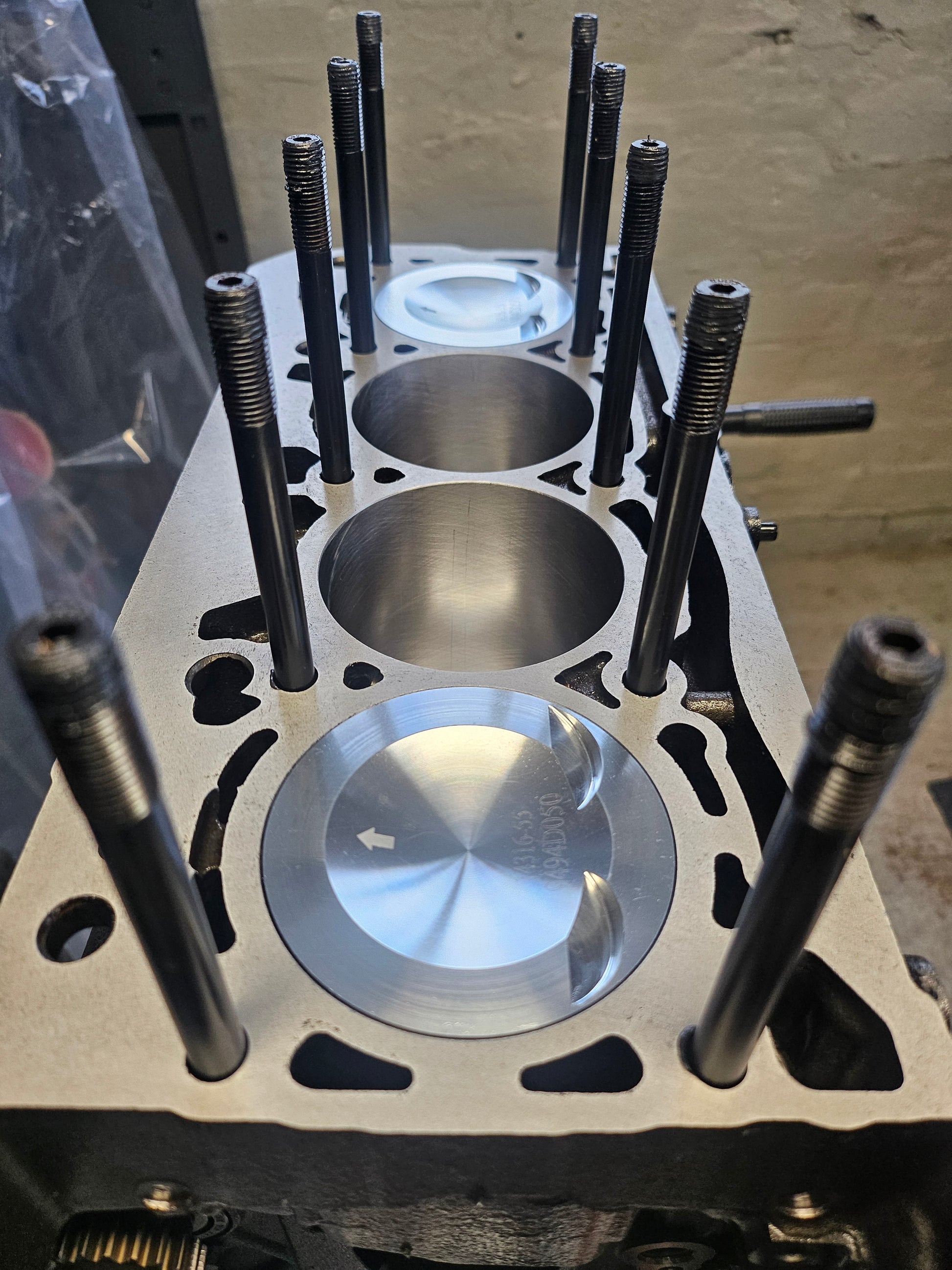

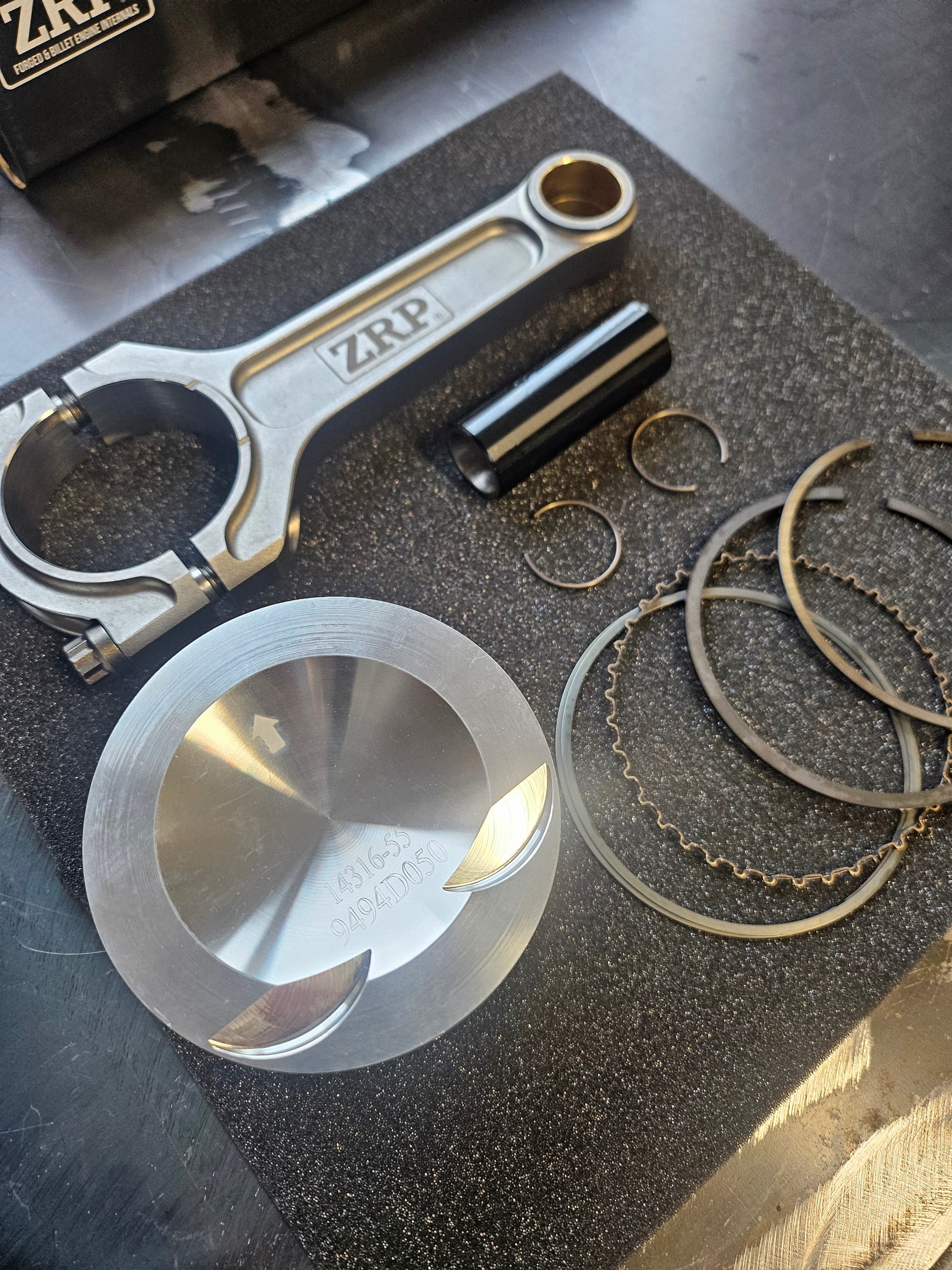

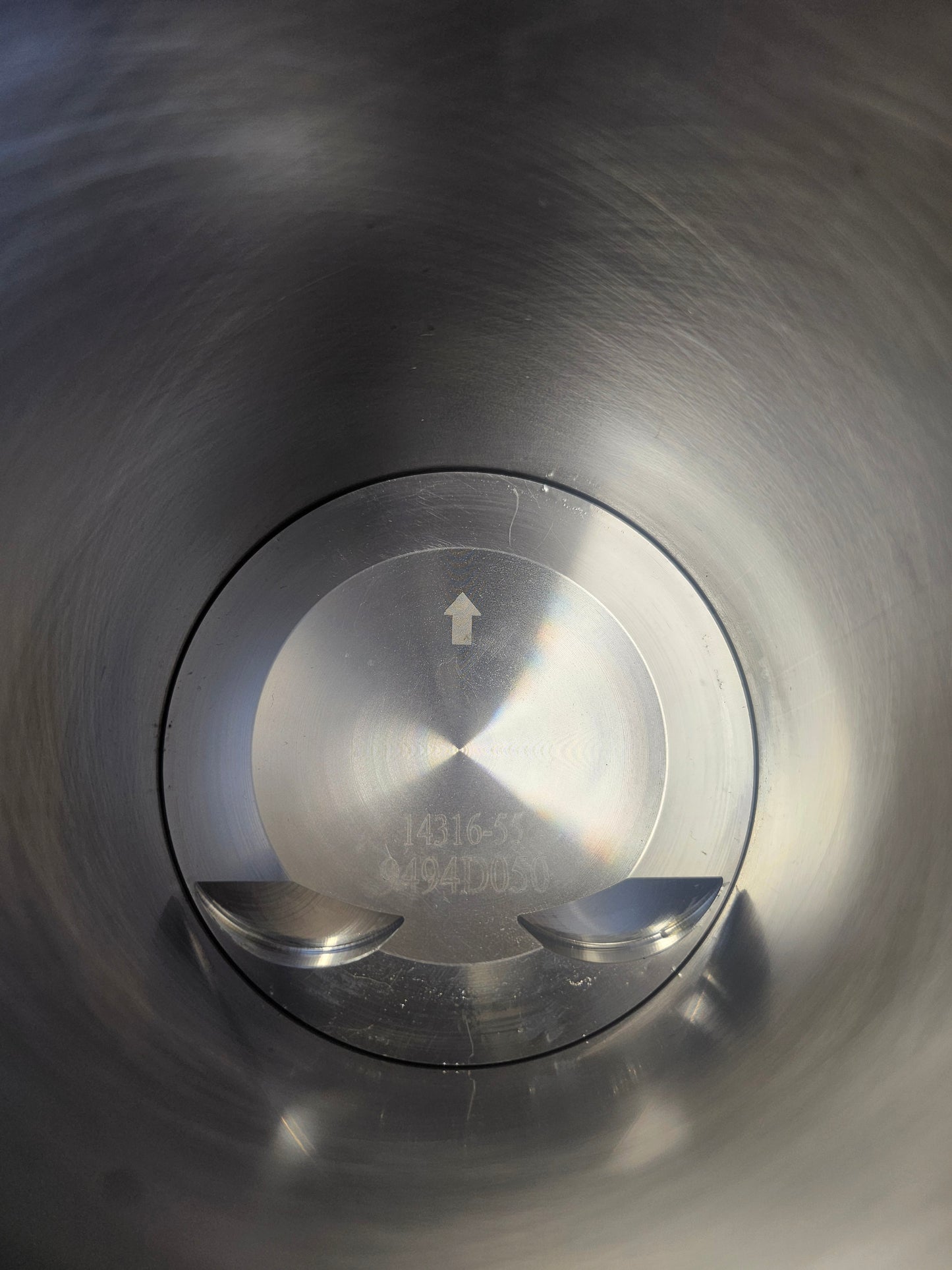

• Wössner 83mm forged pistons
• New Wössner piston rings — precision gapped

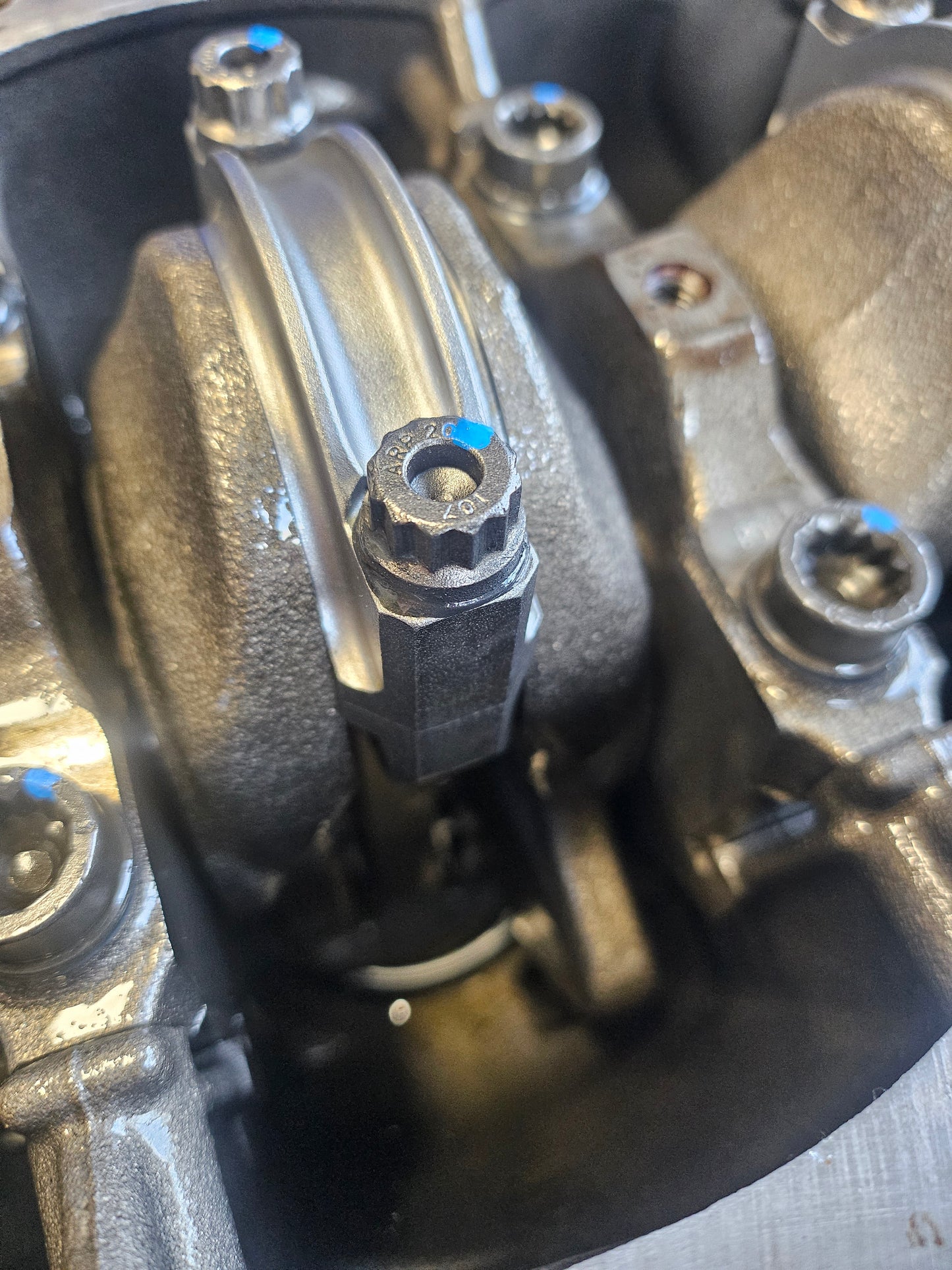

• ZRP forged I-beam conrods

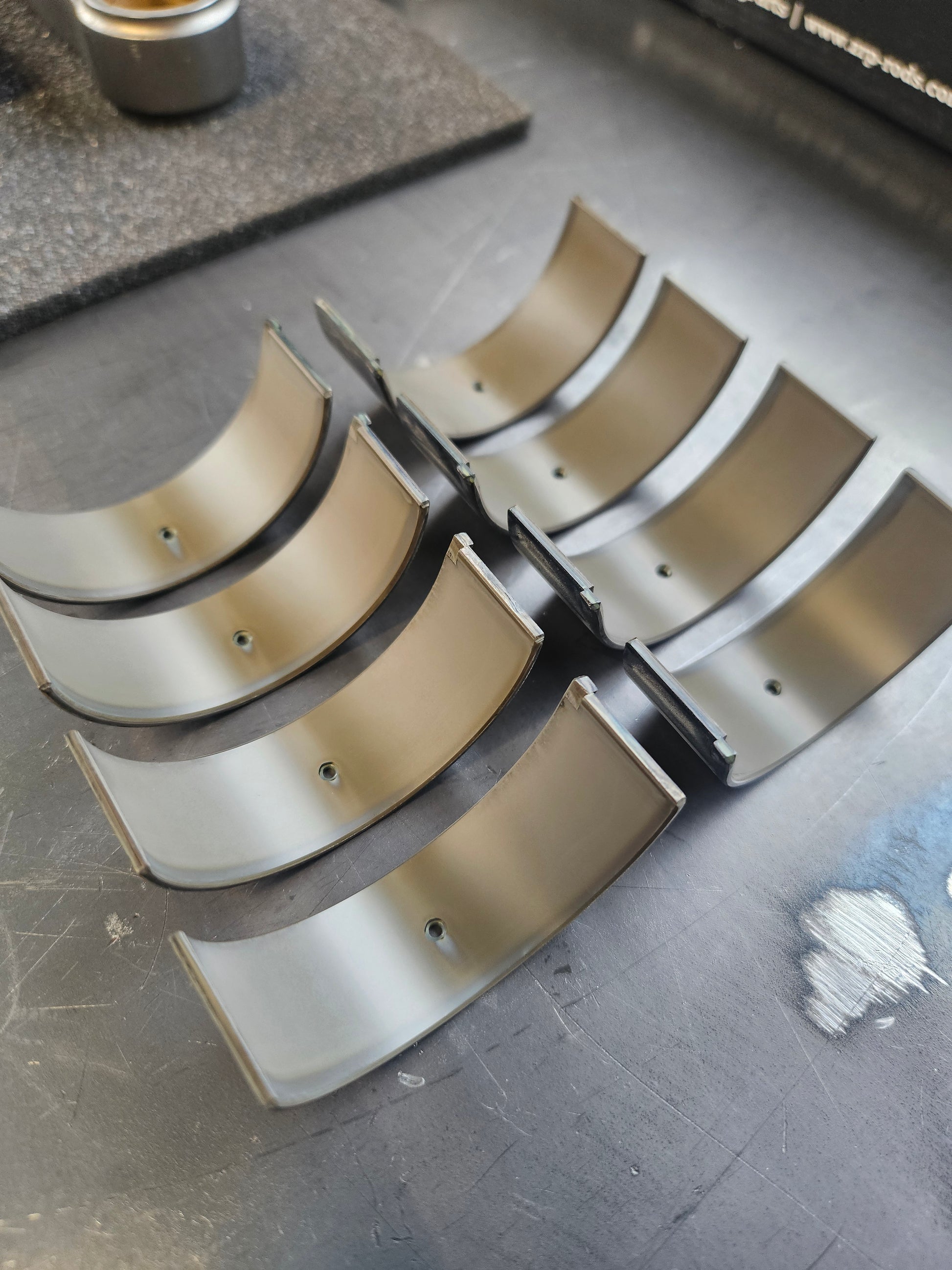

• ACL Race big-end bearings

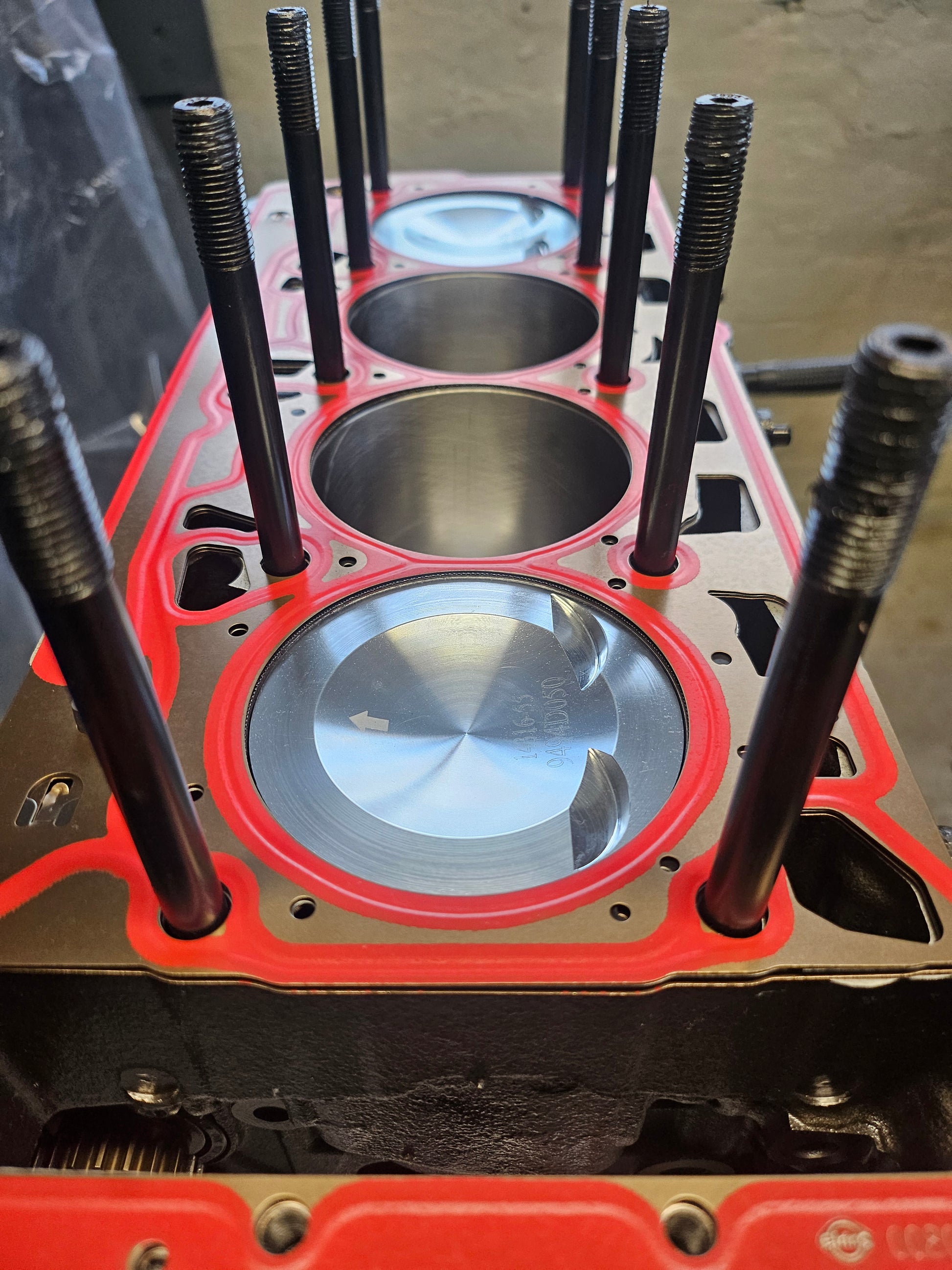

• ARP head studs
• Brand-new OEM crankshaft

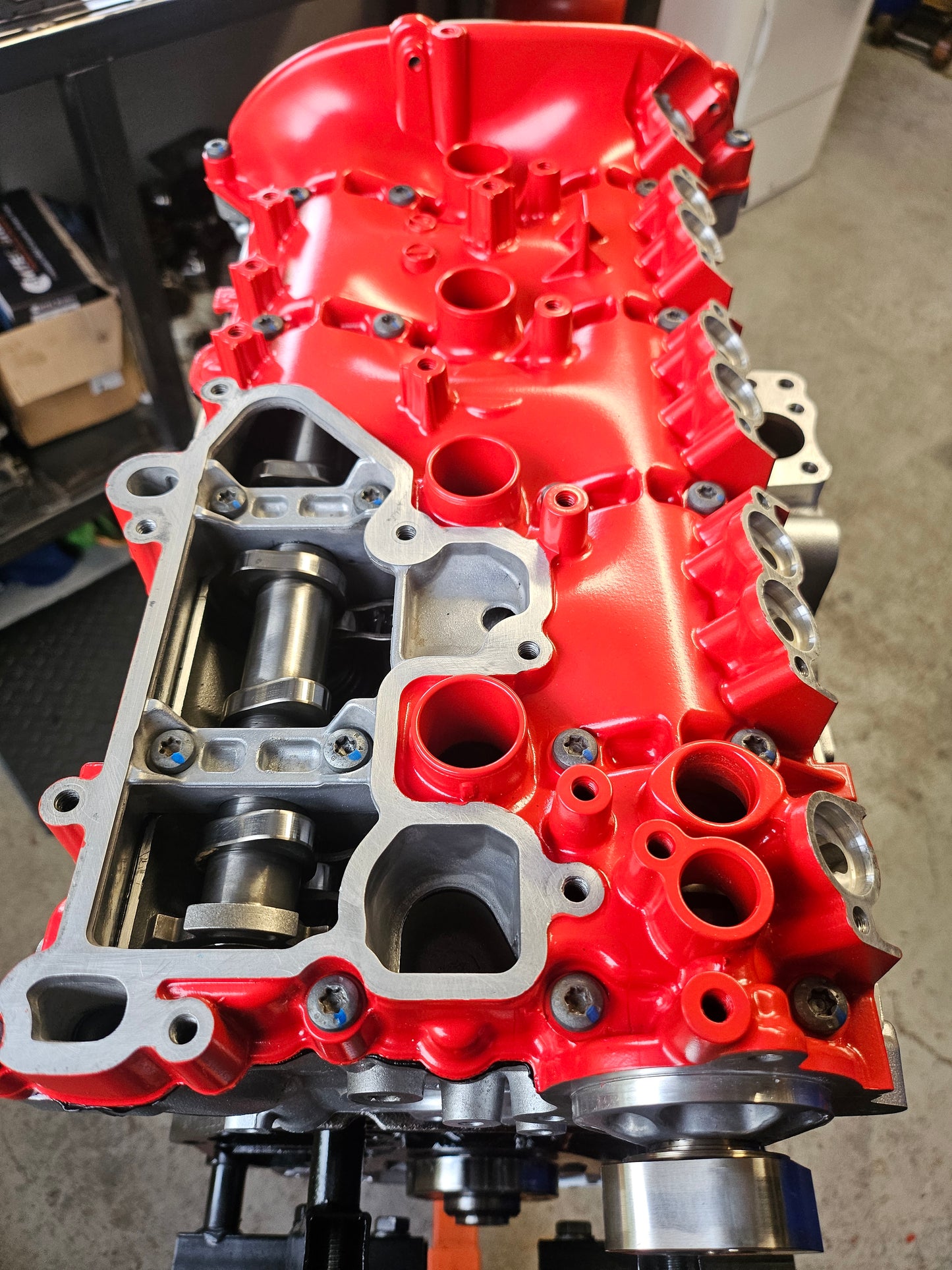

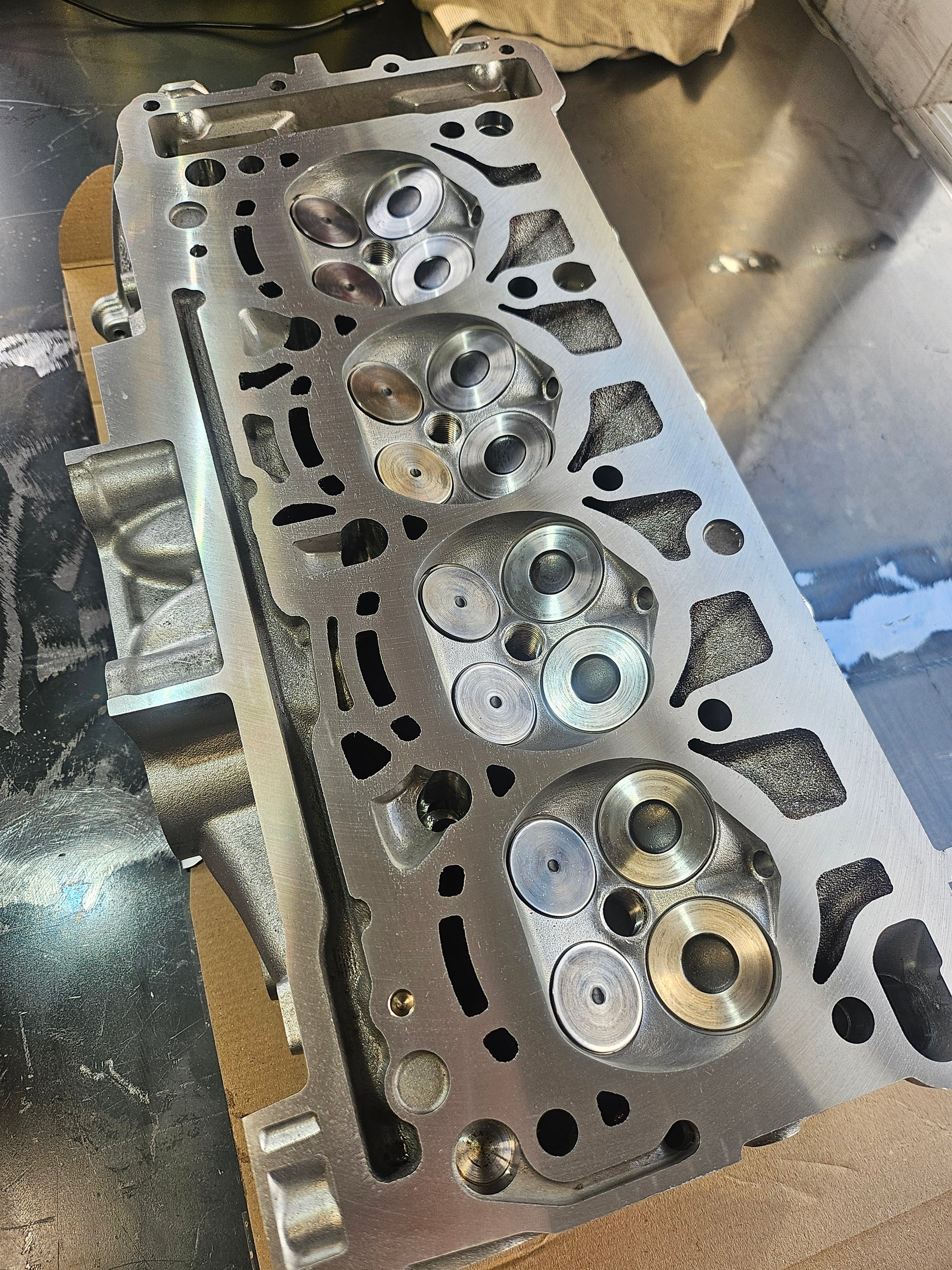

Cylinder Head Refresh
• Cylinder head pressure-tested and skimmed
• Valves polished
• Valve seats cut and valves lapped

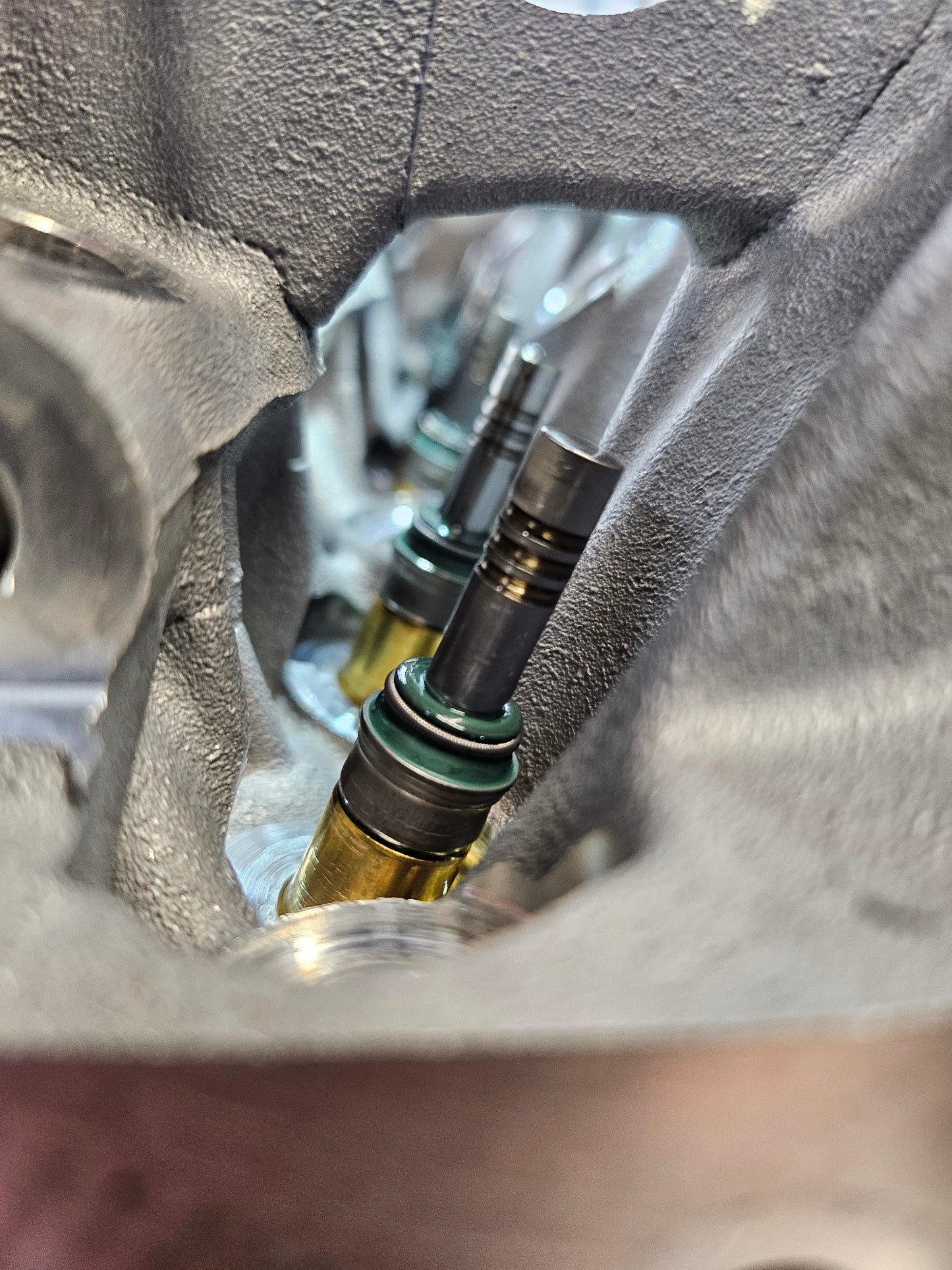

• Uprated valve stem seals
• Hydraulic tappets collapsed and cleaned
• New head gasket

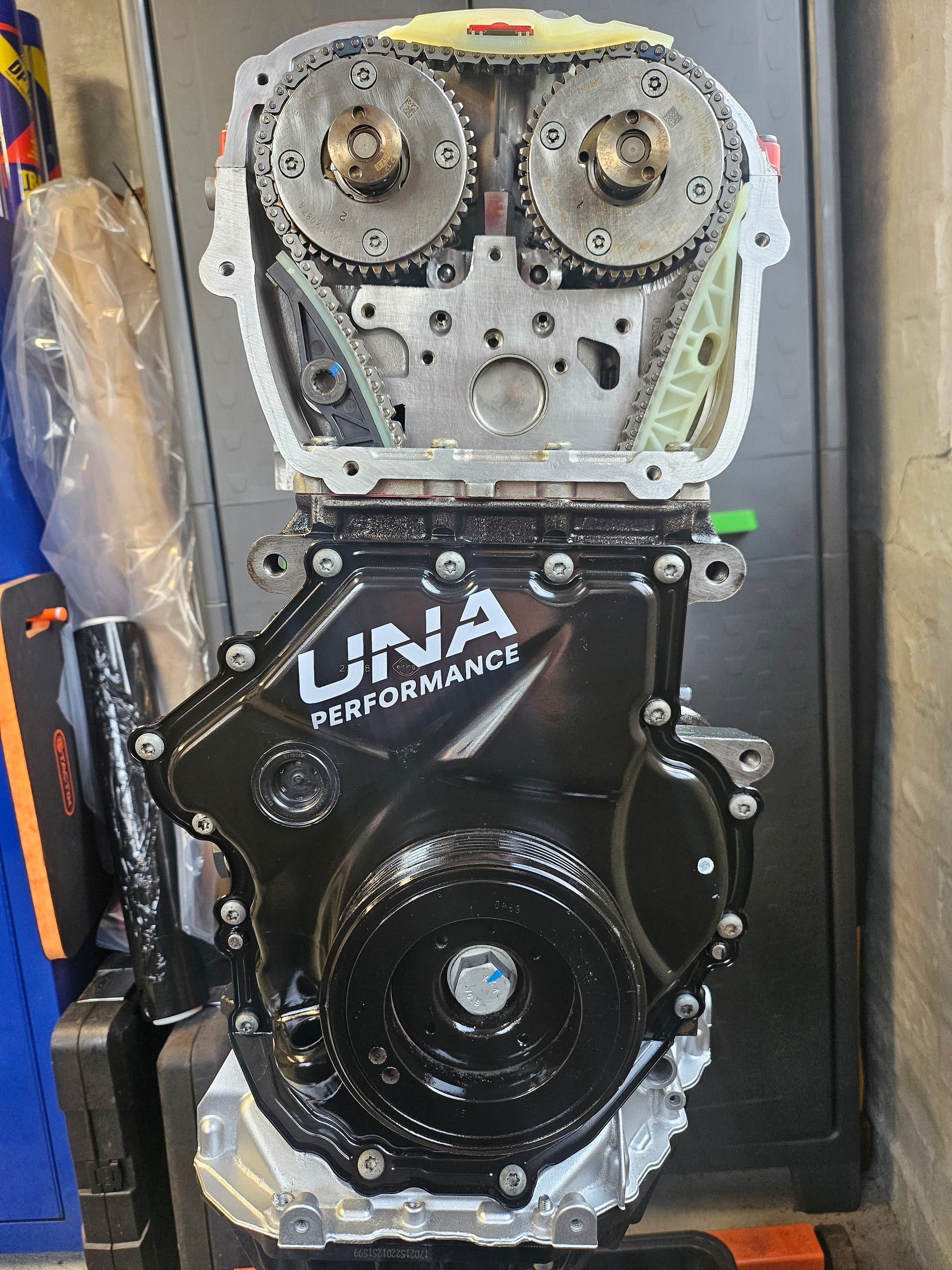

Timing and Oiling System
• New timing chain kit
• Oil pump stripped, checked and cleaned
• New sump gasket
• New lower timing cover
• New front crank seal
• New rear main seal
---
Additional Notes
• Suitable for big-turbo conversions
• Built for sustained high boost and cylinder pressure
• Ideal for fast-road, track, drag or roll-racing builds
• OE cylinder head specification maintained for drivability and reliability
---
Compatibility
Compatible with EA888 Gen 3 engines:
CJX, DJH, DNU and other EA888.3 variants
---
Power Rating
Engine built to support up to 650bhp
(With appropriate turbo system, fueling, mapping and cooling upgrades)
---
Warranty
6-month labour warranty on workmanship.
Warranty excludes:
Incorrect installation • Wrong mapping • Overboost • Oil starvation
Overheating • Track or motorsport use
---
Core Surcharge
A £1,000 surcharge is included and refunded upon return of your old engine
(Serviceable block and crank required)
